SS Klondike (II)

Vessel Drawings

11 drawings of the Klondike (II). Select a drawing to open it at full size.

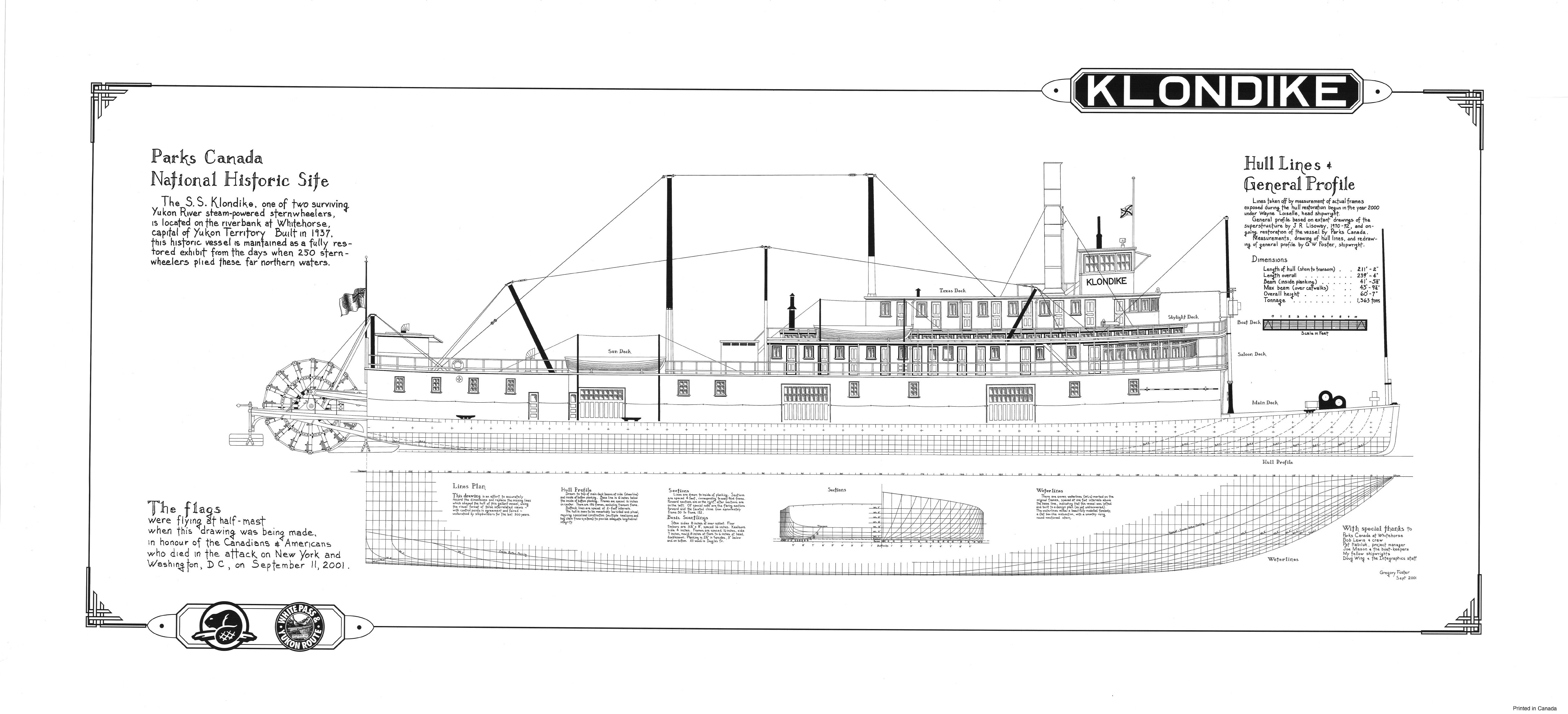

Poster of the Klondike with the general profile above and the hull lines below, notes, dimensions and a scale
Hull Lines & General Profile
Sept 2001
Drawing: Gregory W. Foster, shipwright, for Parks Canada, S.S. Klondike National Historic Site
Cover sheet with a three-quarter view drawing of the Klondike and the Department of Indian Affairs and Northern Development, National and Historic Parks Branch heading
Cover Sheet
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.

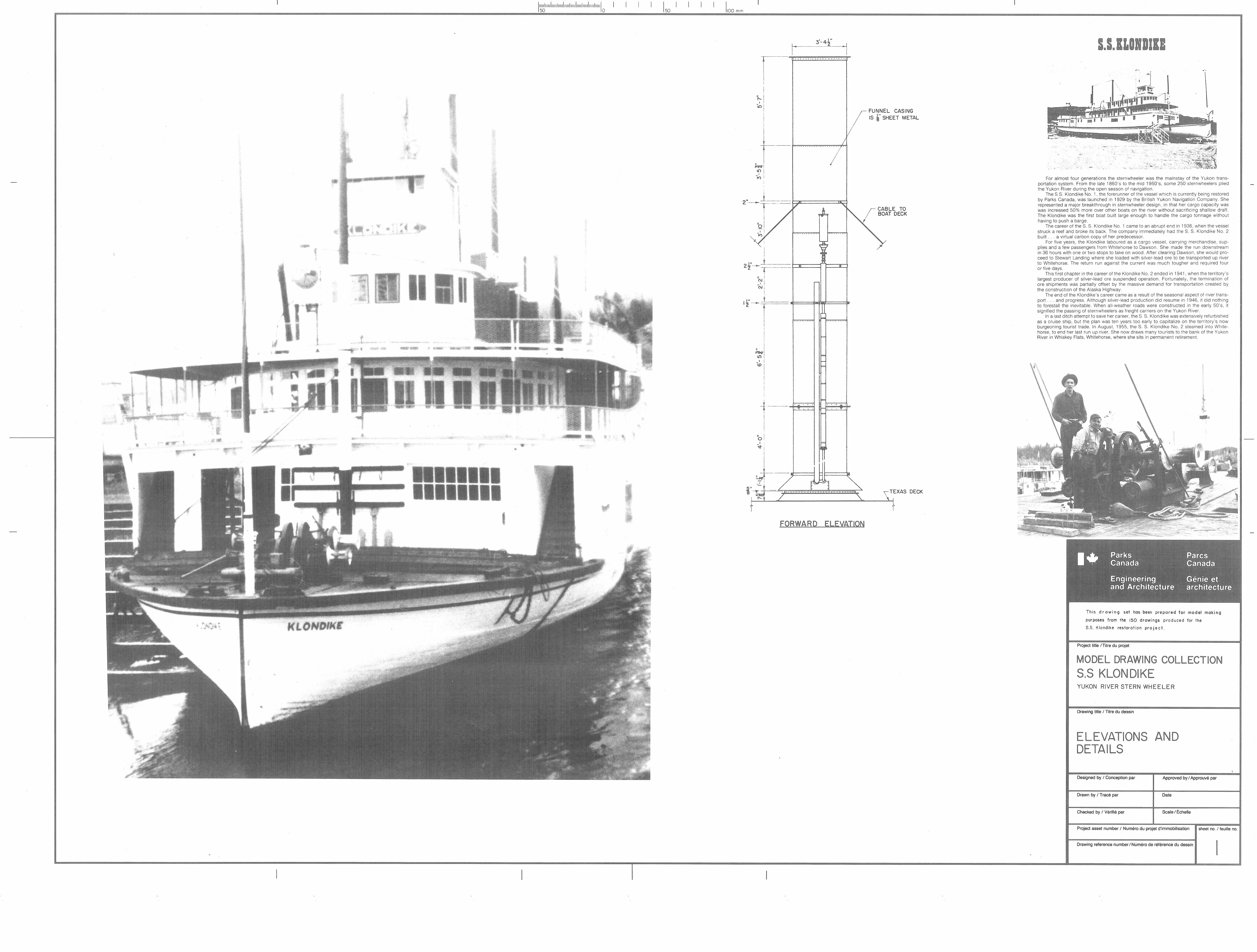

Sheet with a historic photograph of the Klondike, a forward elevation of the stack and an introductory text block
Sheet 1 · Elevations and Details
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.

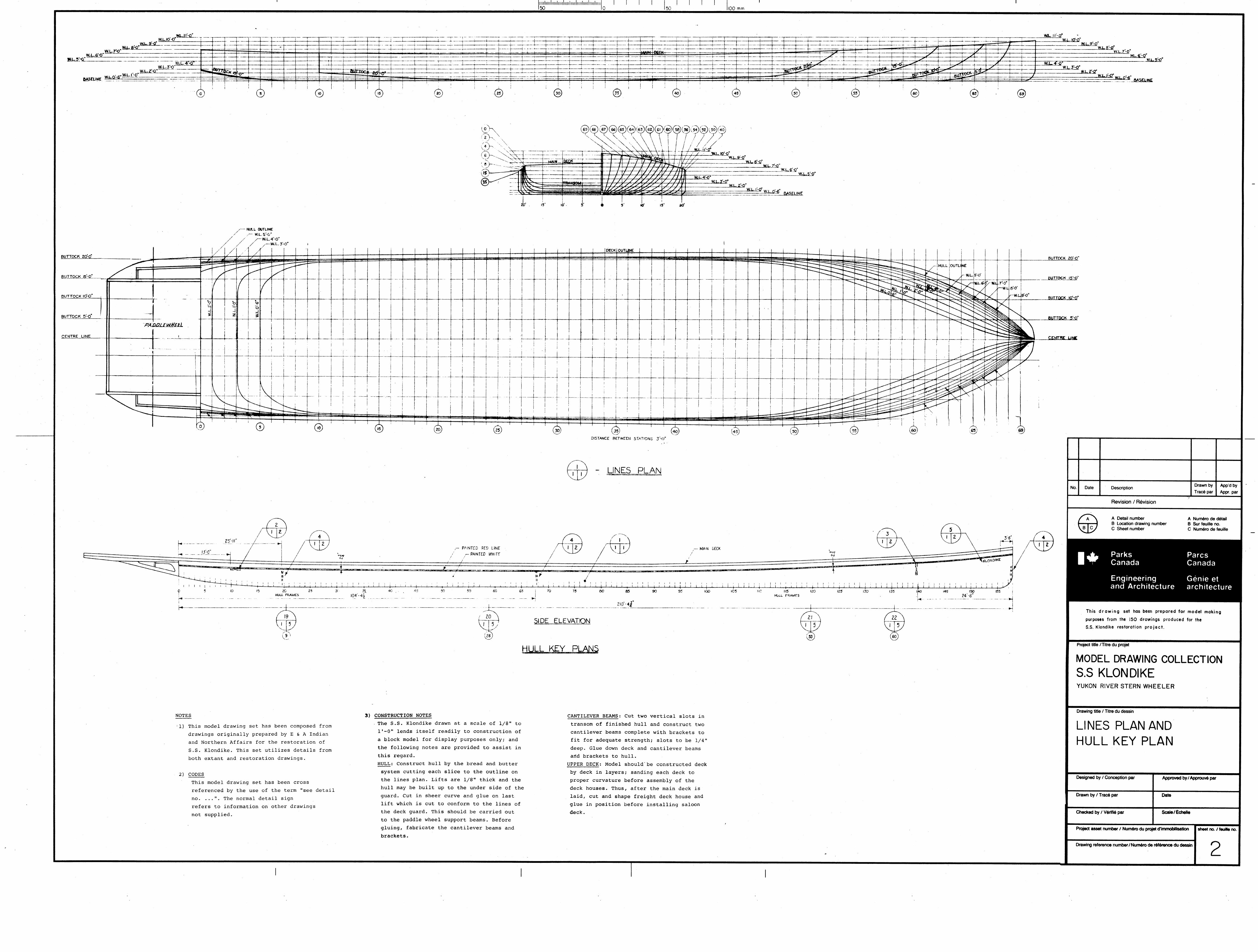

Lines plan of the hull with body plan, half-breadth plan and side elevation, plus hull key plan and notes
Sheet 2 · Lines Plan and Hull Key Plan
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.

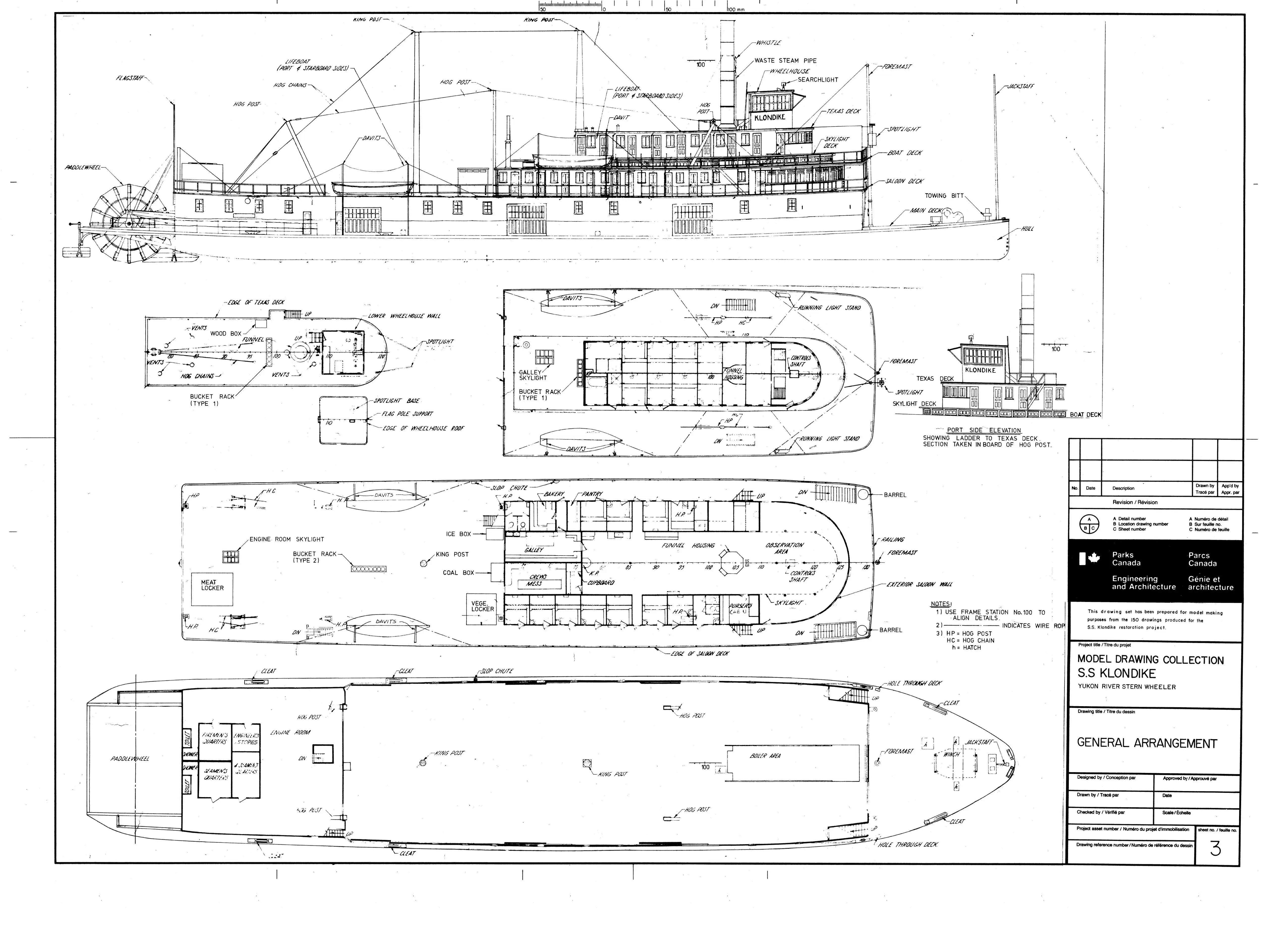

Outboard profile with labelled parts above plans of the texas, boat, saloon and main decks
Sheet 3 · General Arrangement
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.

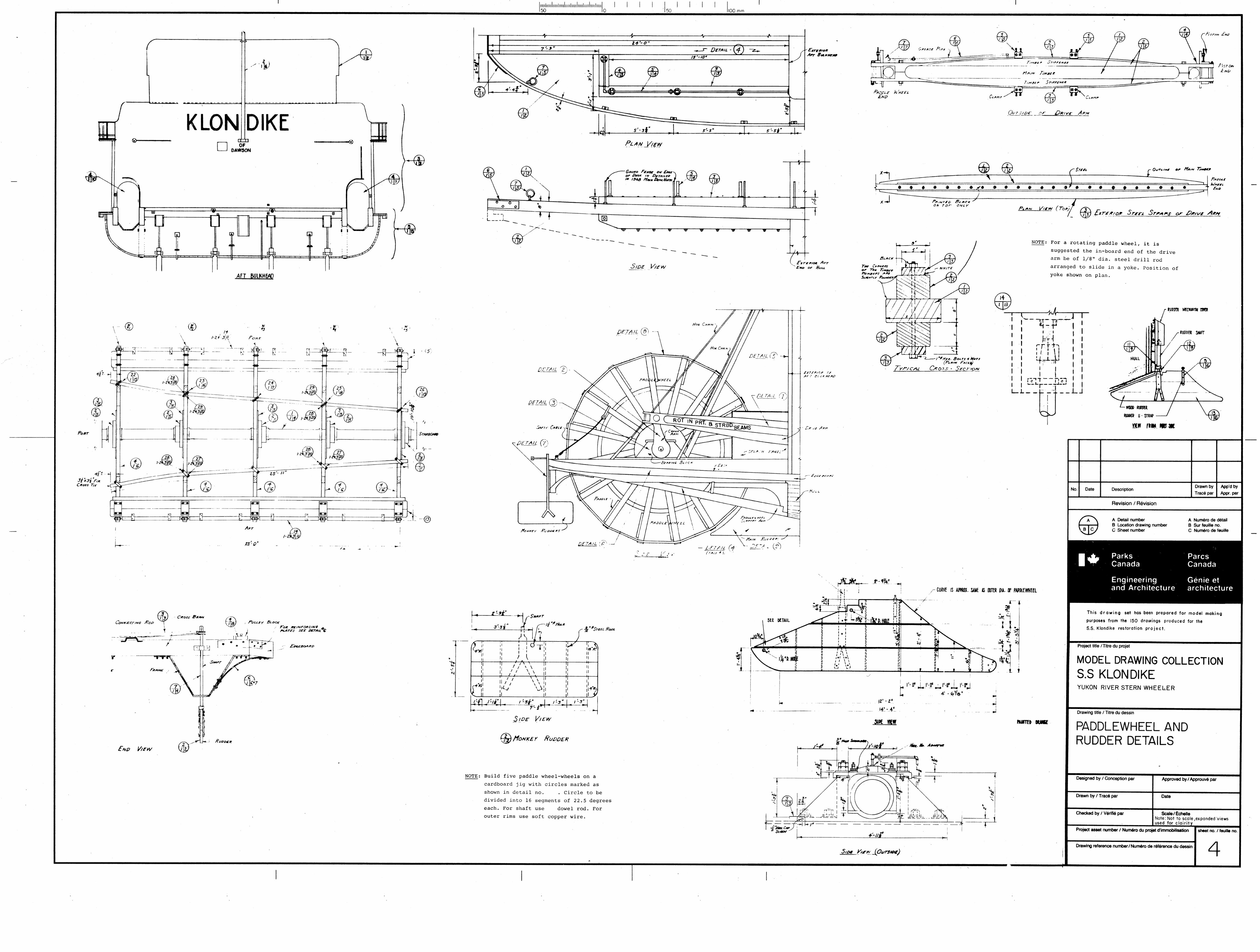

Details of the paddlewheel, rudders, pilothouse front and fittings
Sheet 4 · Paddlewheel and Rudder Details
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.

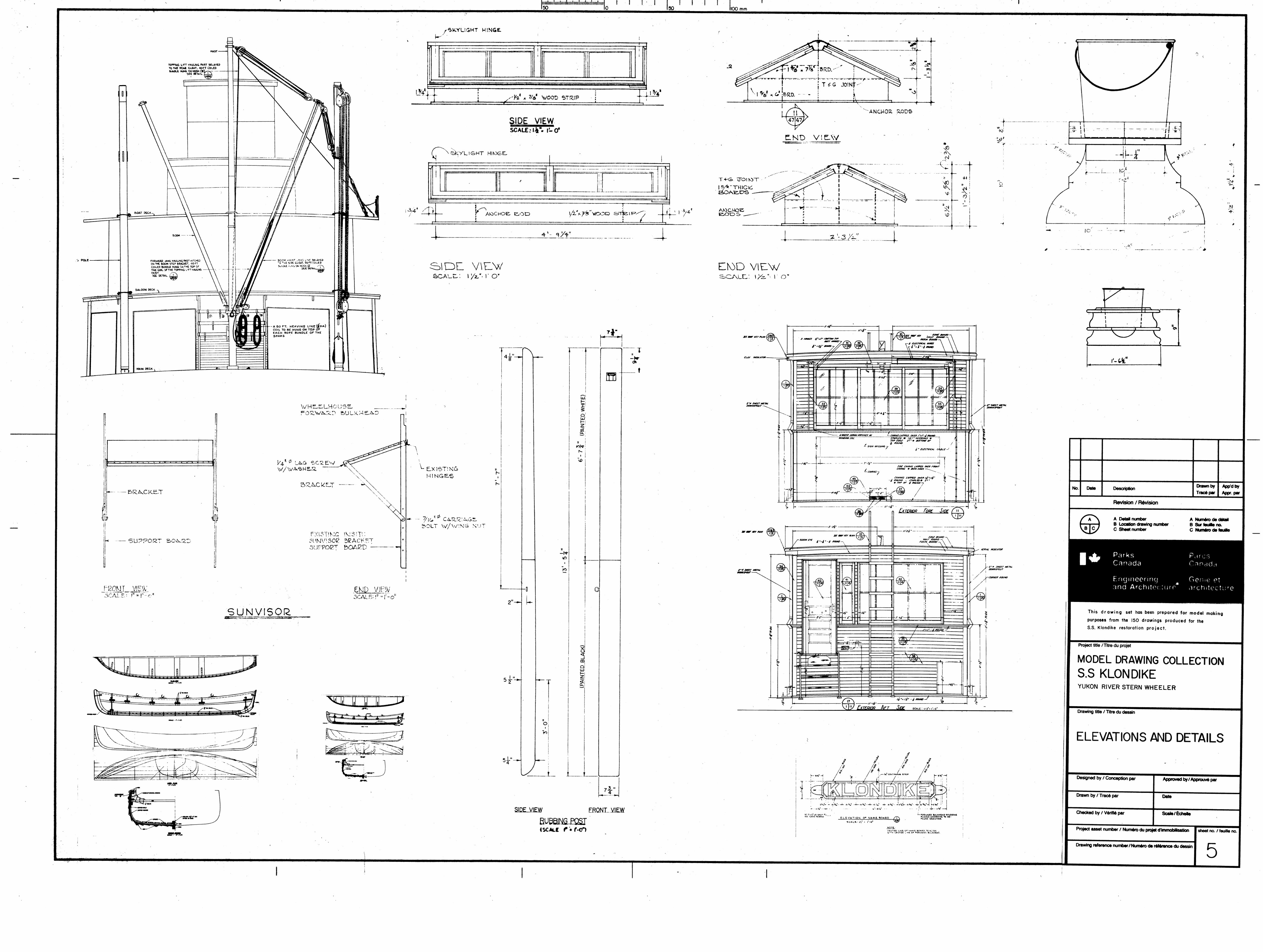

Details of king posts, spars, skylights, lifeboats and the wheelhouse
Sheet 5 · Elevations and Details
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.

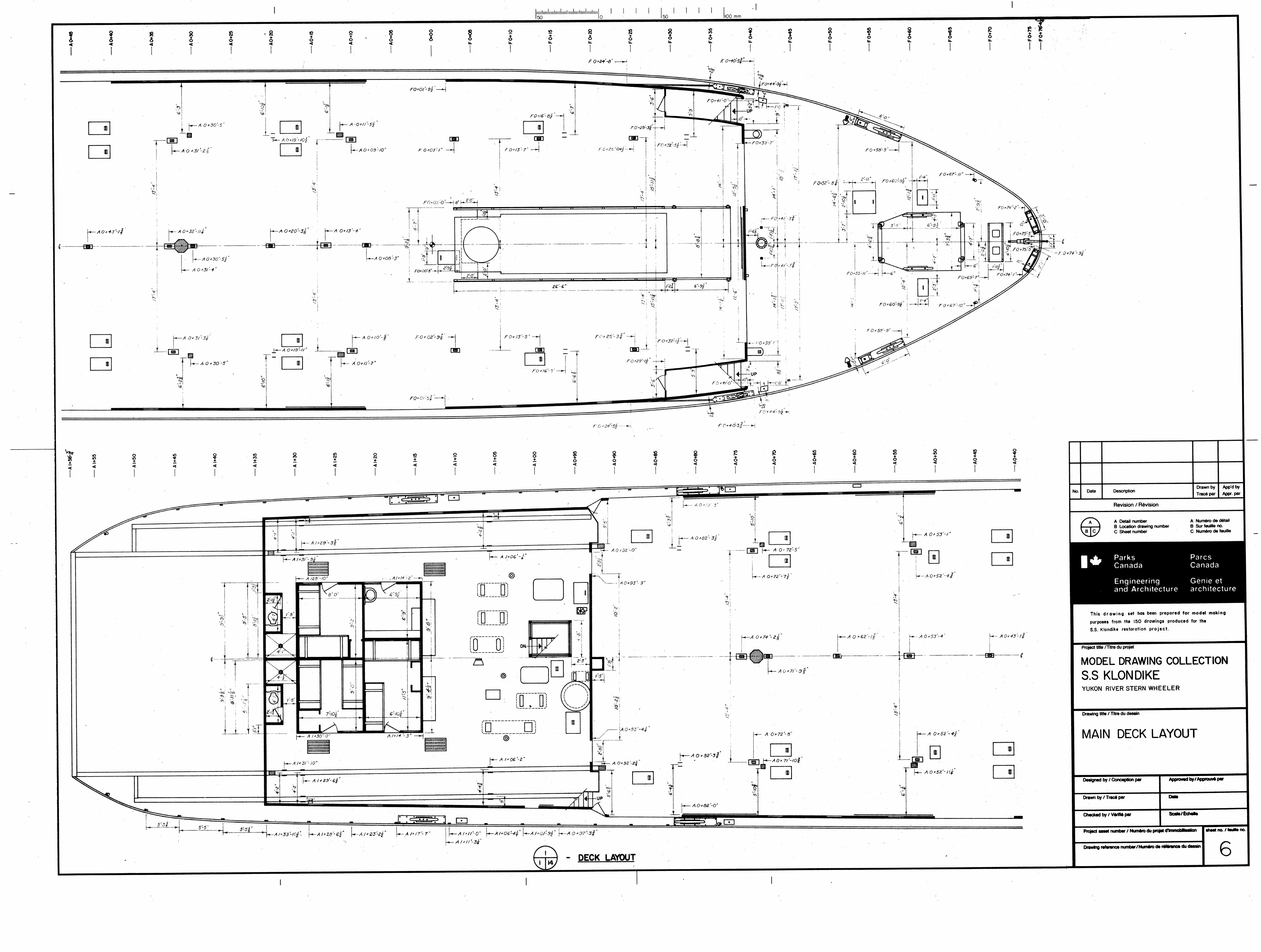

Main deck plan with boiler, engine room and cargo areas
Sheet 6 · Main Deck Layout
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.

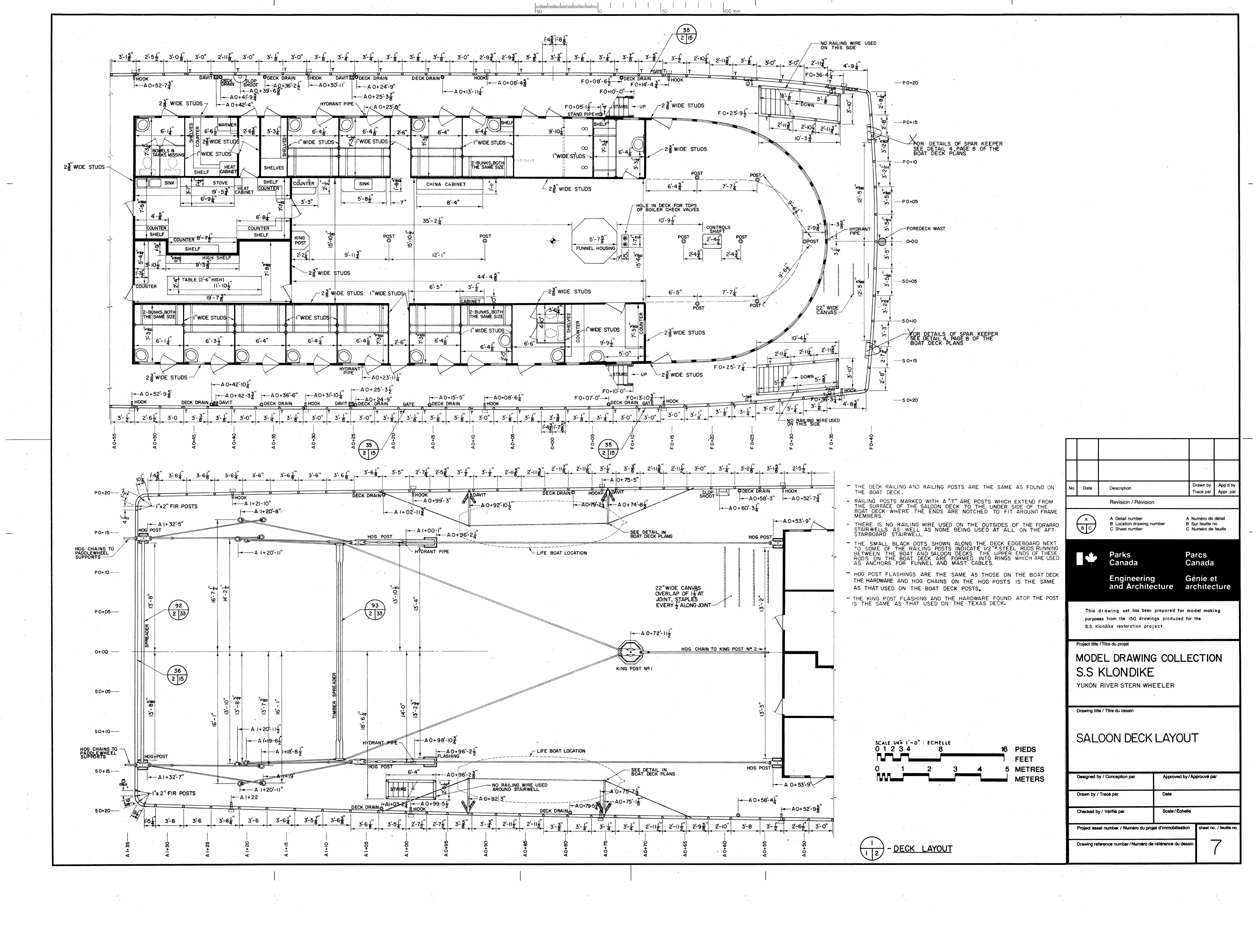

Saloon deck plan with staterooms, dining saloon and observation room
Sheet 7 · Saloon Deck Layout
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.

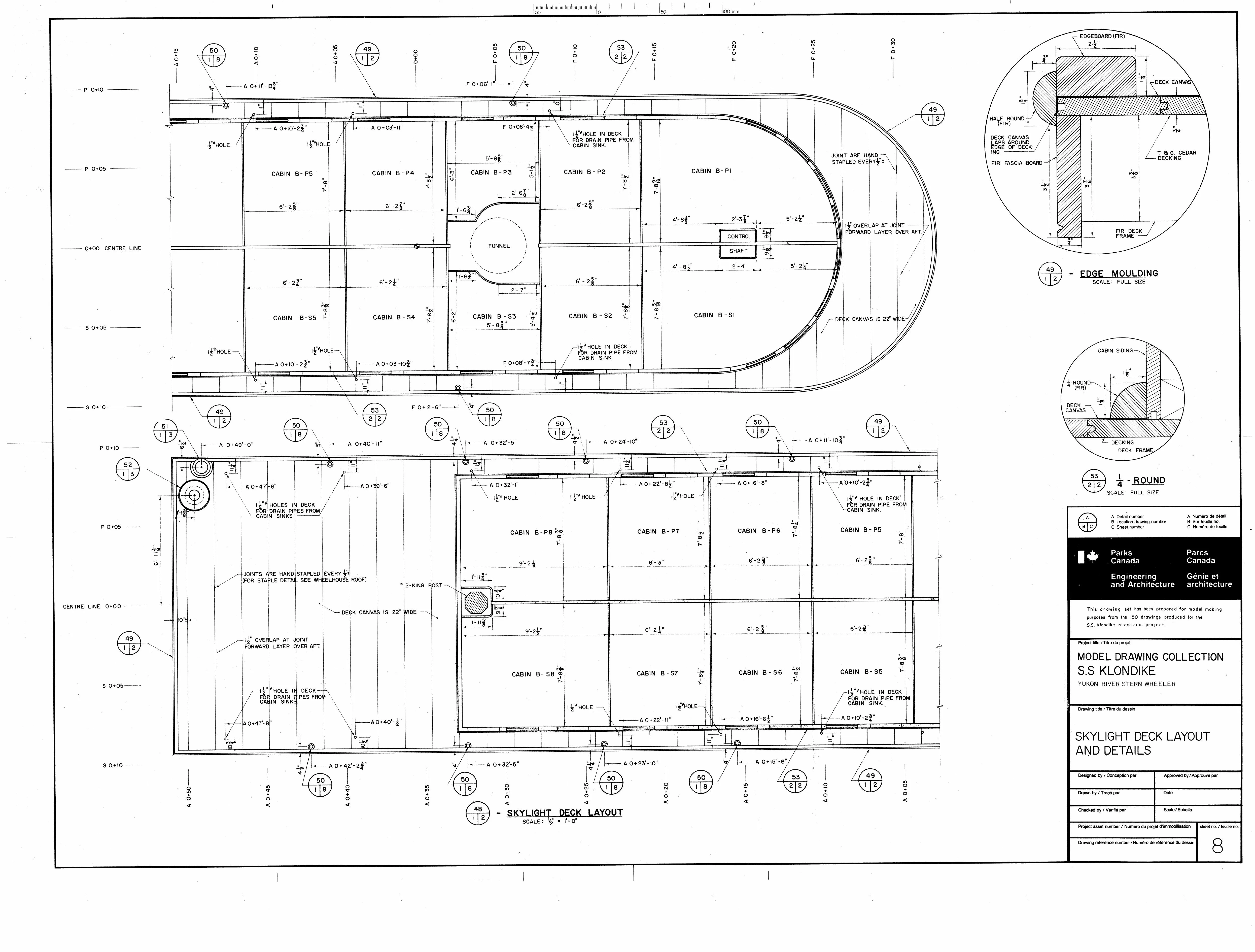

Skylight deck and texas deck plans with moulding and rail details
Sheet 8 · Skylight Deck Layout and Details
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.

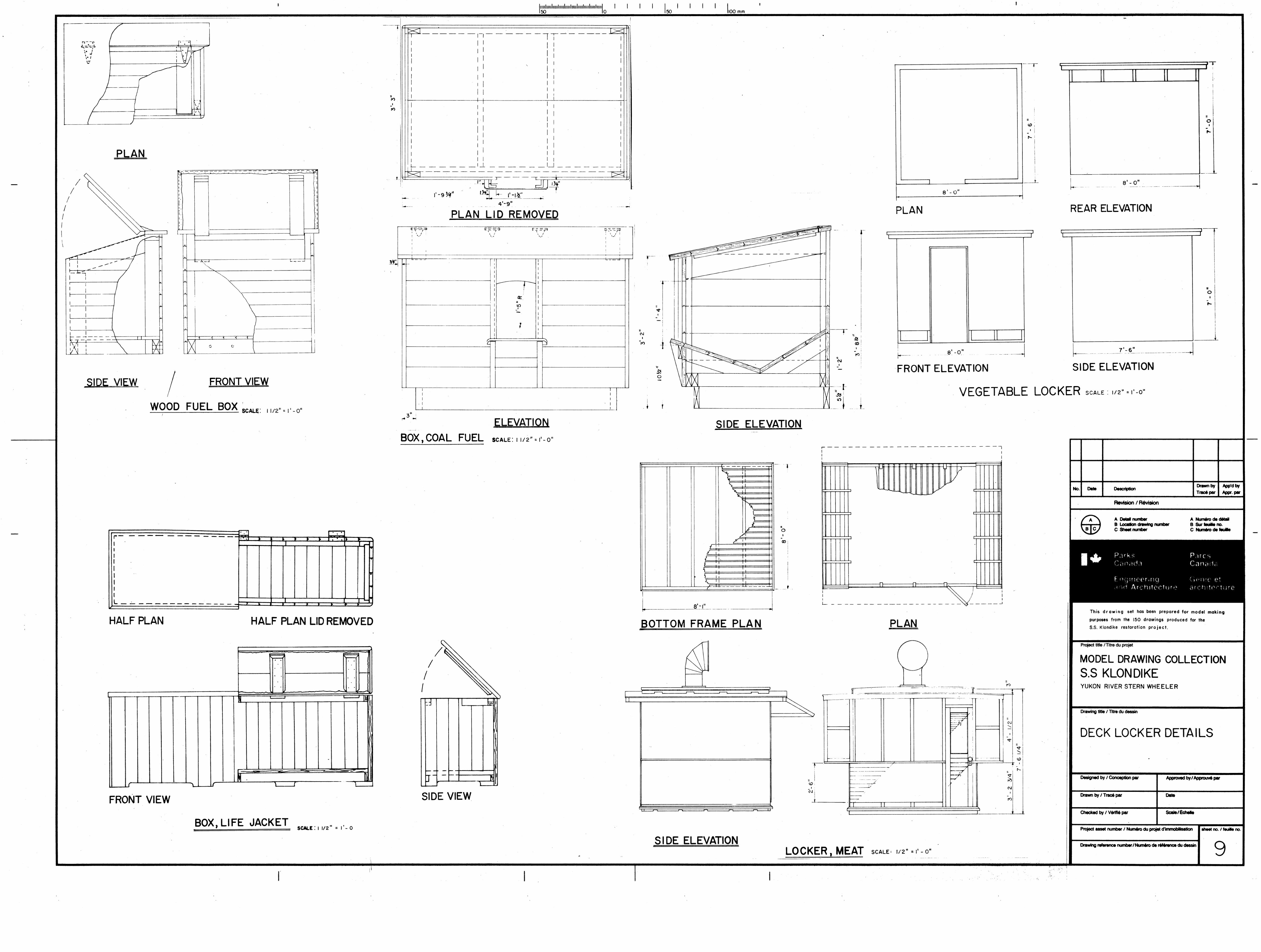

Details of deck lockers and boxes, including the wood fuel box, coal fuel box, life jacket box, vegetable and meat lockers
Sheet 9 · Deck Locker Details
Drawing: Parks Canada, Engineering and Architecture, Model Drawing Collection: S.S. Klondike.
