Steamer Portland

Vessel Drawings

5 drawings of the Portland. Select a drawing to open it at full size.

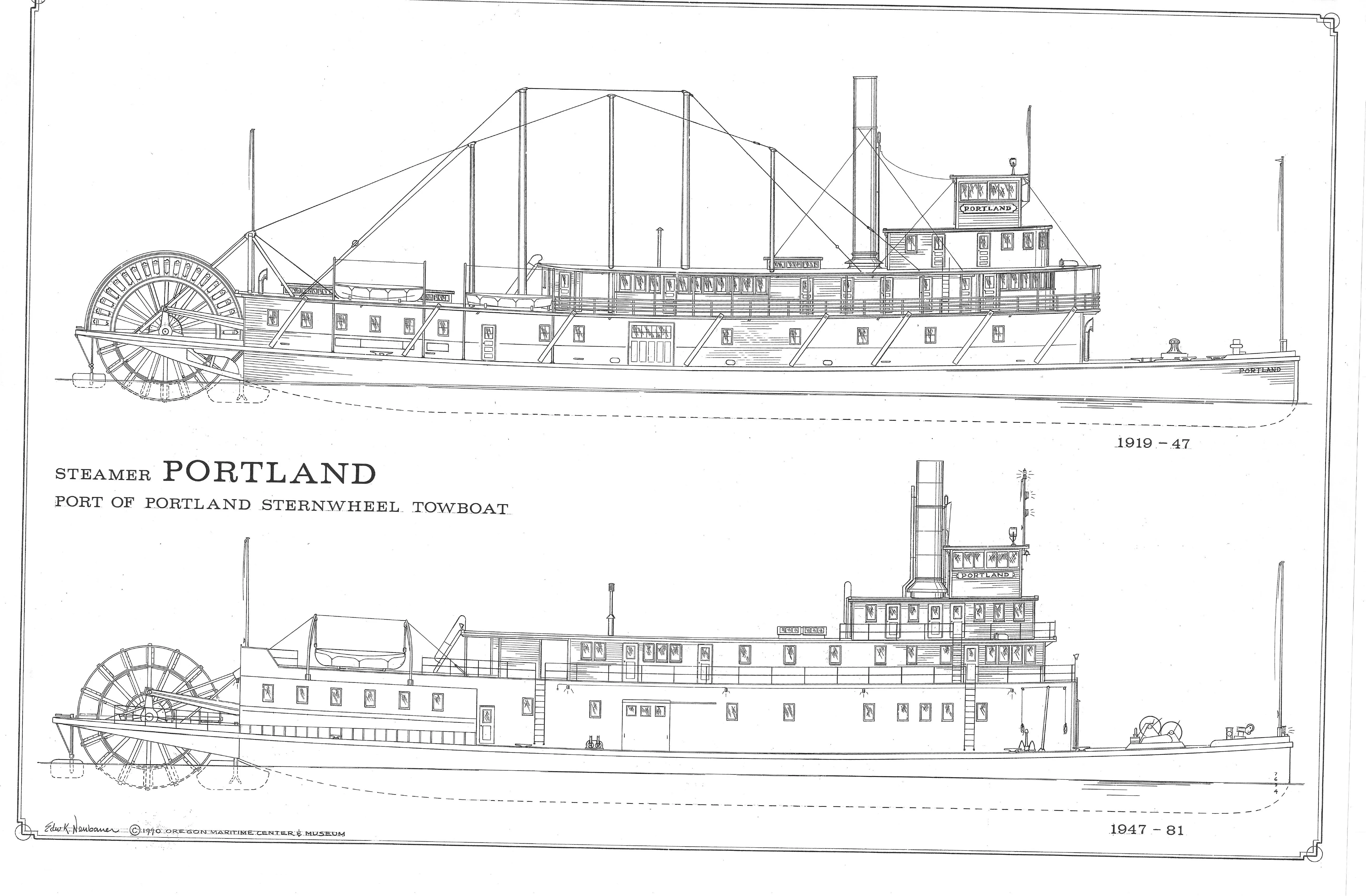

Two outboard profiles, the 1919 Portland above and the 1947 Portland below, titled Steamer Portland, Port of Portland sternwheel towboat
Sheet 0 · Cover sheet, outboard profiles 1919–47 and 1947–81
1990
Drawing: Edward K. Neubauer; © Oregon Maritime Center & Museum

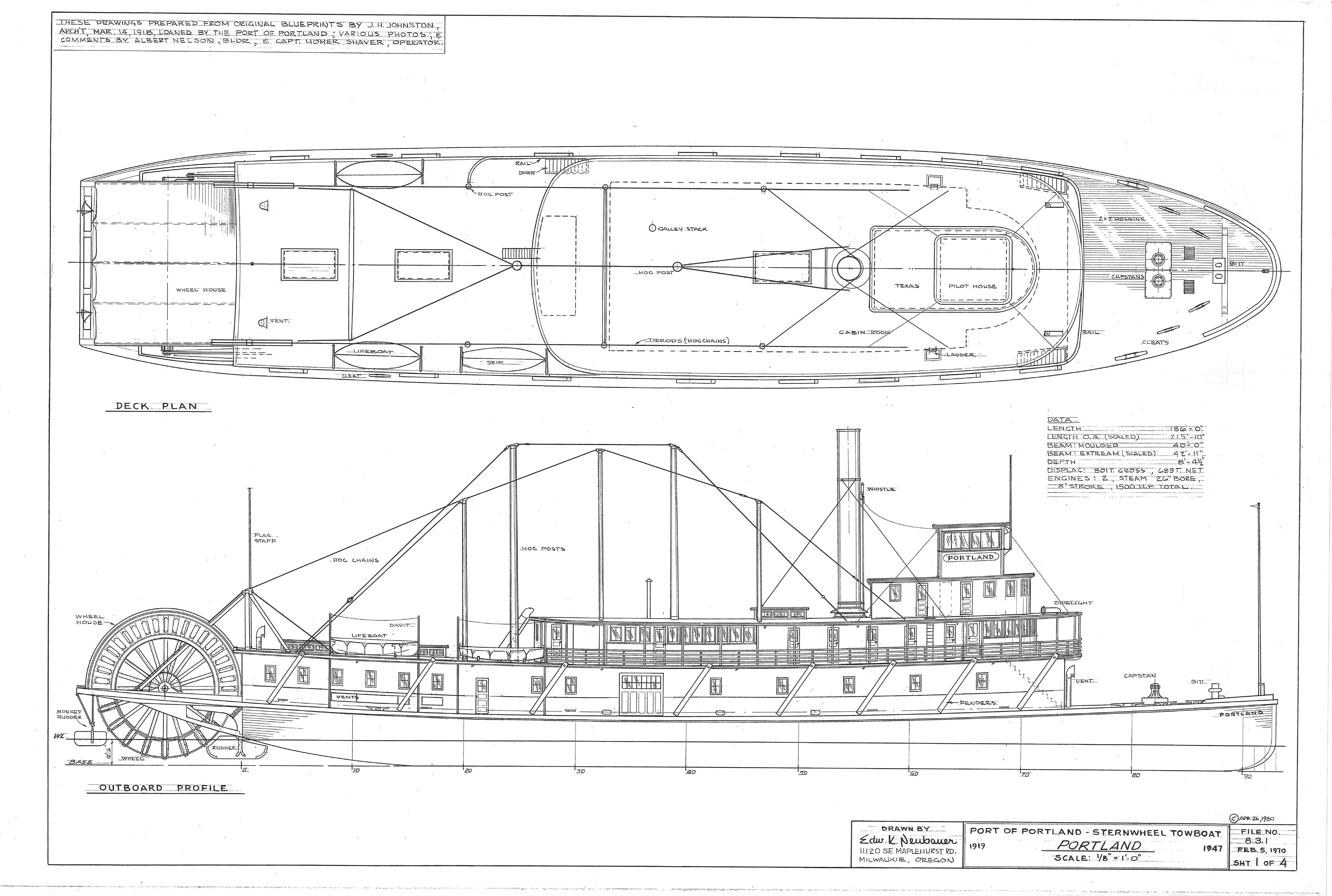

Main deck plan and outboard profile of the 1919 sternwheel towboat Portland, with title block and notes
Sheet 1 of 4 · Deck plan and outboard profile (1919 boat)
5 Feb 1970
Drawing: Edward K. Neubauer, from original blueprints by J. H. Johnston, Arch't, 1918, loaned by the Port of Portland

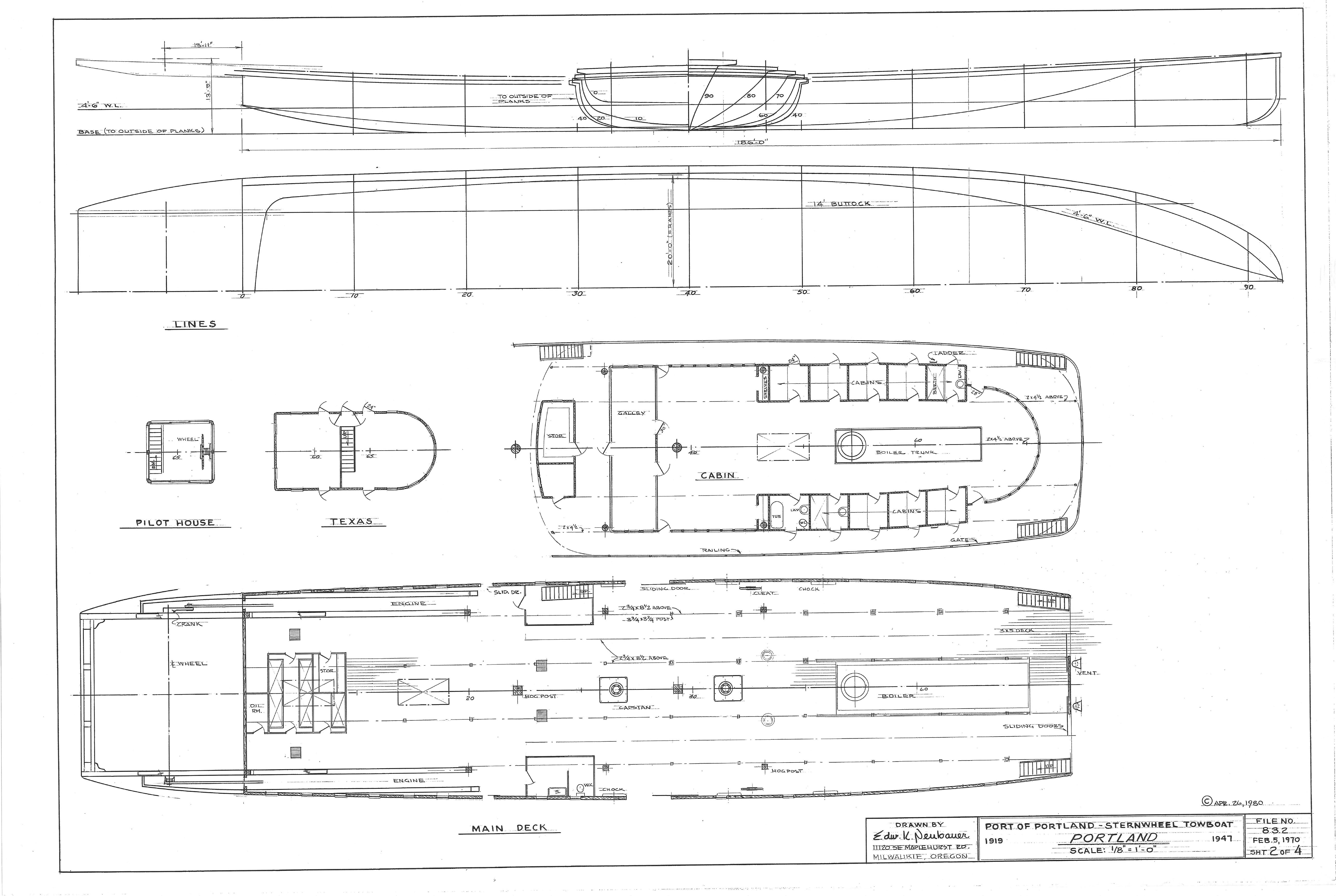

Hull lines and plans of the pilot house, texas, cabin and main deck of the 1919 Portland
Sheet 2 of 4 · Lines; pilot house, texas, cabin and main deck plans (1919 boat)
Drawing: Edward K. Neubauer, from original blueprints by J. H. Johnston, Arch't, 1918, loaned by the Port of Portland

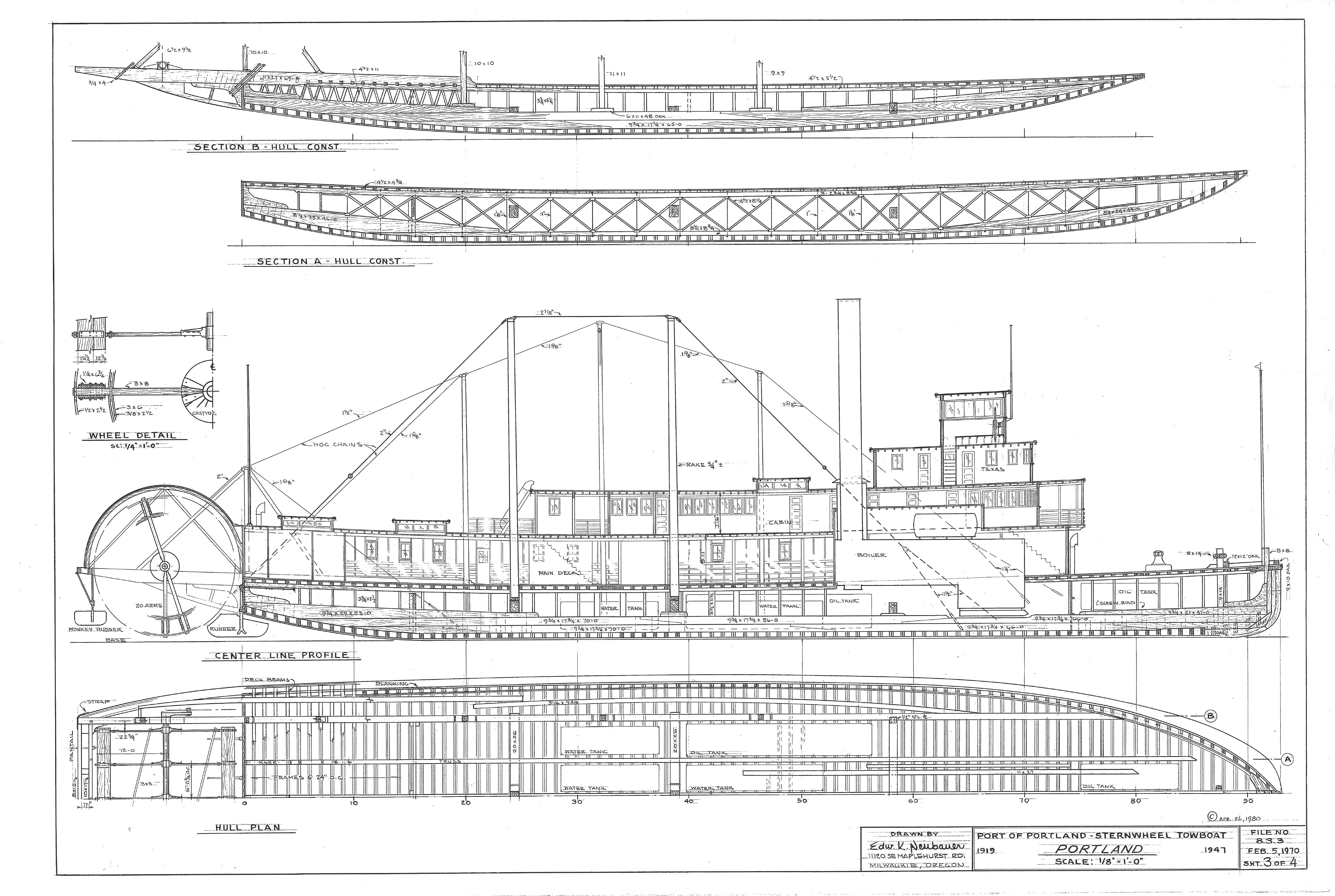

Hull construction sections, sternwheel detail, center line profile and hull plan of the 1919 Portland
Sheet 3 of 4 · Hull construction, wheel detail, center line profile and hull plan (1919 boat)
Drawing: Edward K. Neubauer, from original blueprints by J. H. Johnston, Arch't, 1918, loaned by the Port of Portland

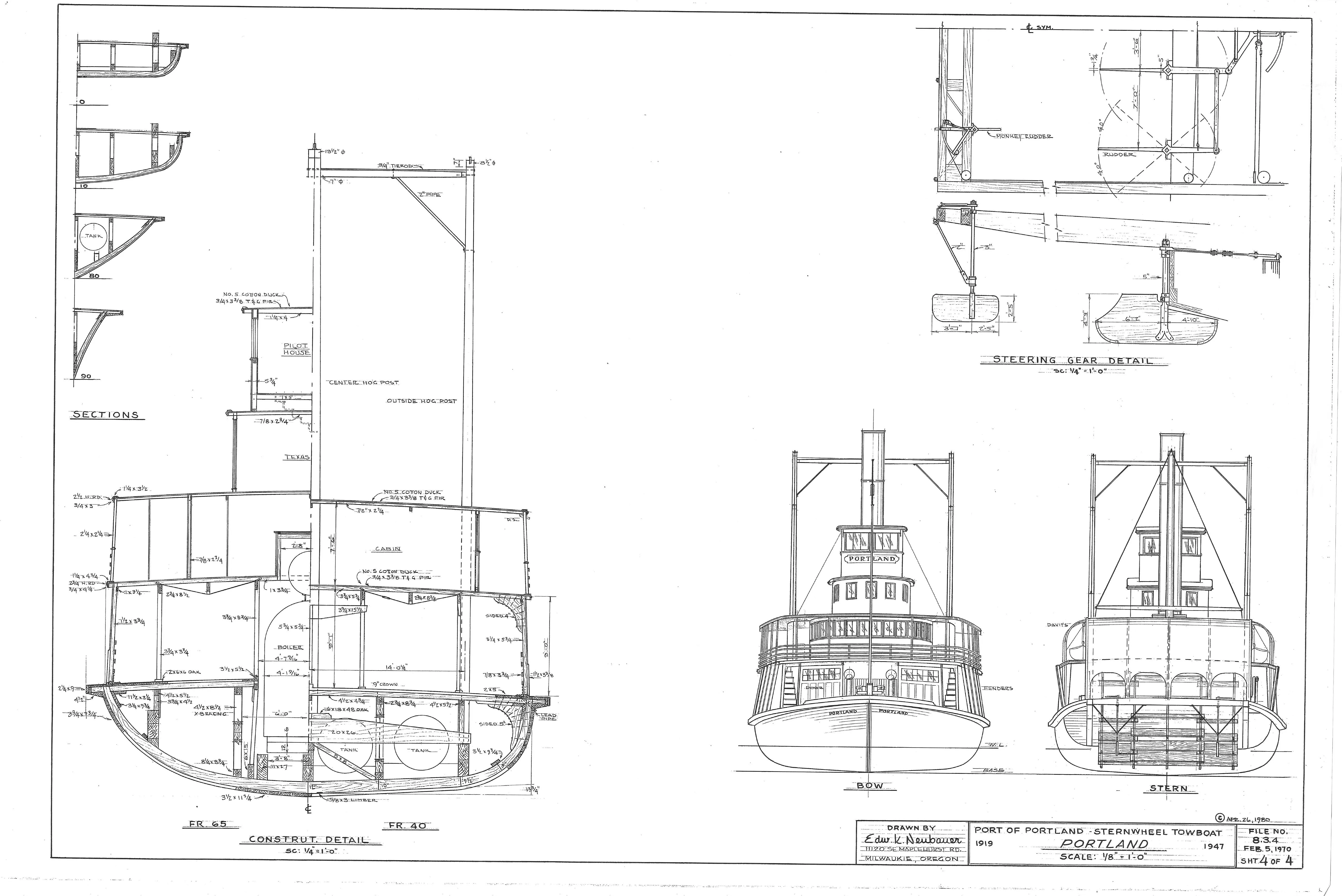

Cross sections, construction details, steering gear detail and bow and stern views of the 1919 Portland
Sheet 4 of 4 · Sections, construction and steering gear details, bow and stern views (1919 boat)
Drawing: Edward K. Neubauer, from original blueprints by J. H. Johnston, Arch't, 1918, loaned by the Port of Portland
